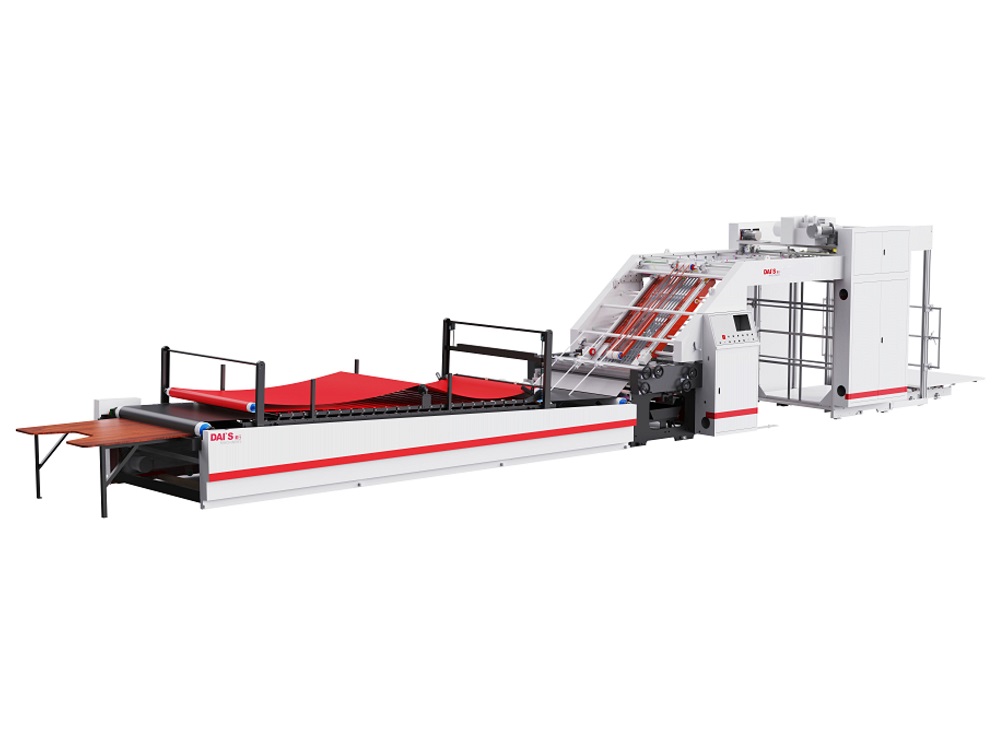

Litho Laminator DS-1450 DS-1650
The whole machine adopts international leading motion controller, so this system can adjust the machine automatically after the paper sizes are input.
Introduction
The whole machine adopts international leading motion controller, so this system can adjust the machine automatically after the paper sizes are input.
Compared to the traditional model, our high-speed laminating machine can reach up the max speed 150m/minute to effect much higher work efficiency.
This high-speed laminating machine is equipped with the unique positioning-and-correcting device for the surface-sheet and self-developing side-lay device with the patent to make the machine run smoothly in high-speed.

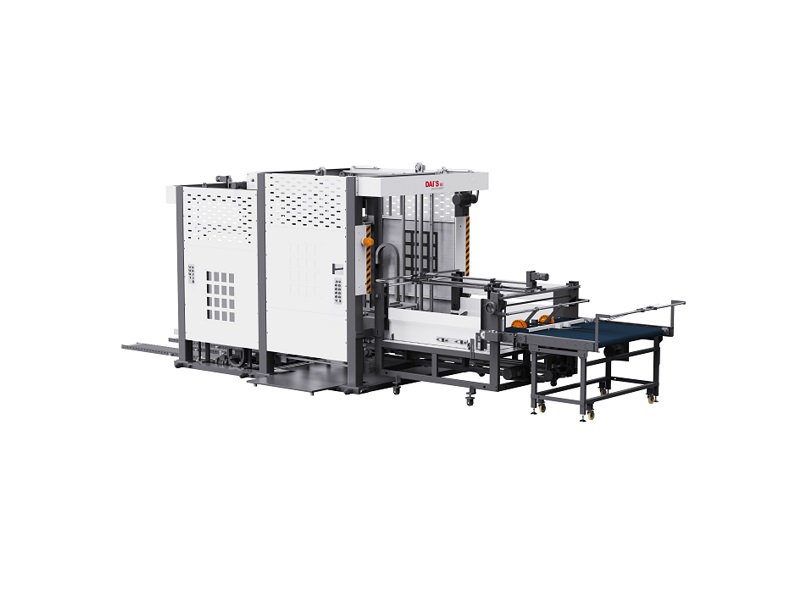

Meanwhile, the turner for the delivery unit is optional to make the machine deliver sheets in non-stop.
Technical Parameters
| Model | DS-1450 | DS-1650 |
| Max. Sheet Size | 1450×1420 mm | 1650×1650 mm |
| Min. Sheet Size | 400×400 mm | 400×400 mm |
| Max. Height of Bottom Sheet | 400mm | 400mm |
| Max. Height of Top Sheet | 1800mm | 1800mm |
| Top Sheet Range | 150~800g/m² | 150~800g/m² |
| Bottom Sheet Range | A,B,C, E, F, 3 & 5 Layer flute, etc. | A,B,C, E, F, 3 & 5 Layer flute, etc. |
| Laminating Accuracy | ±1mm | ±1.5mm |
| Max. Speed | 12000p/h 150m/min | 12000p/h 150m/min |
| Power Consumption | 22kW | 25kW |
| Dimension | 13500×2450×2600mm | 16986×2650×2700mm |
| Weight | 8000kg | 9800kg |
